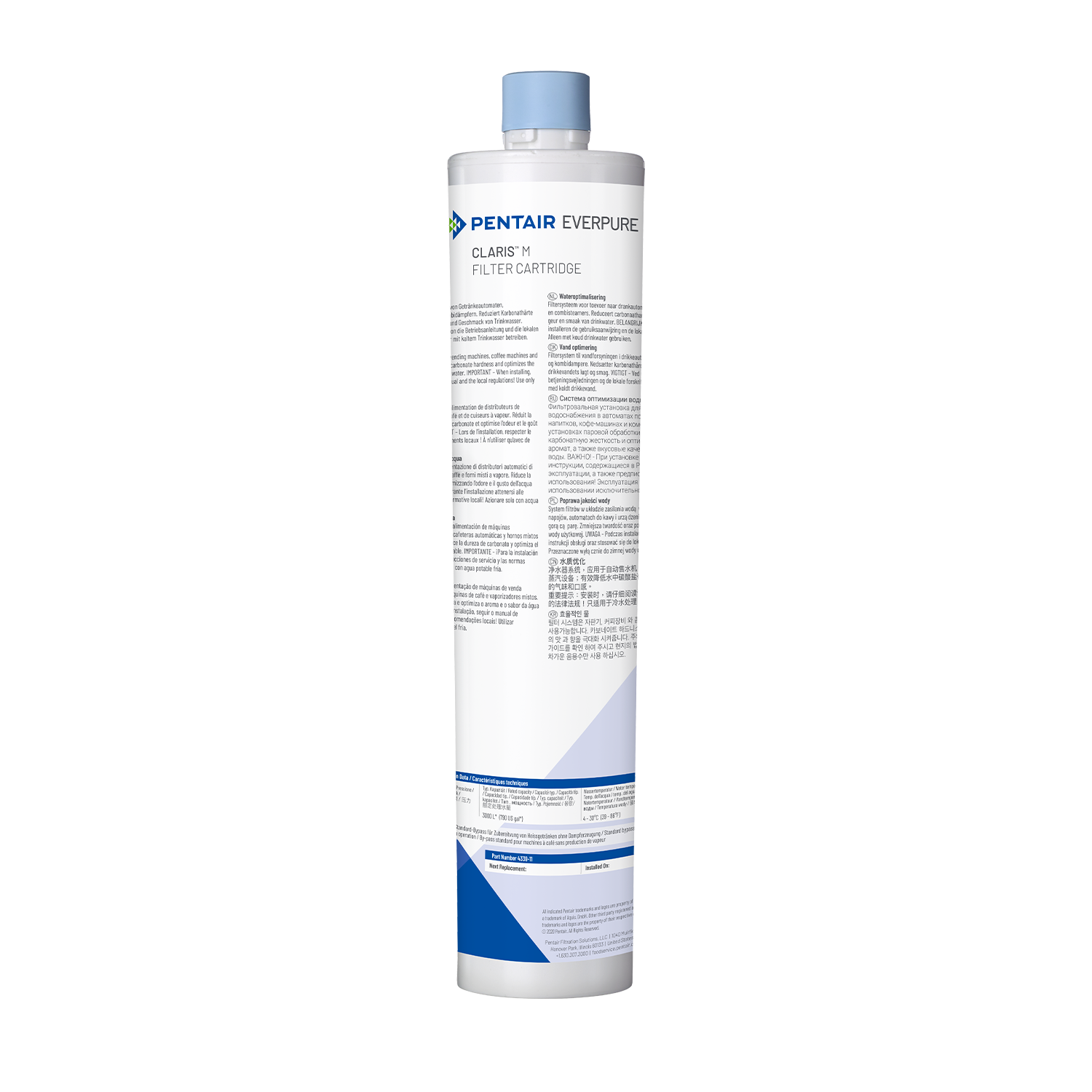

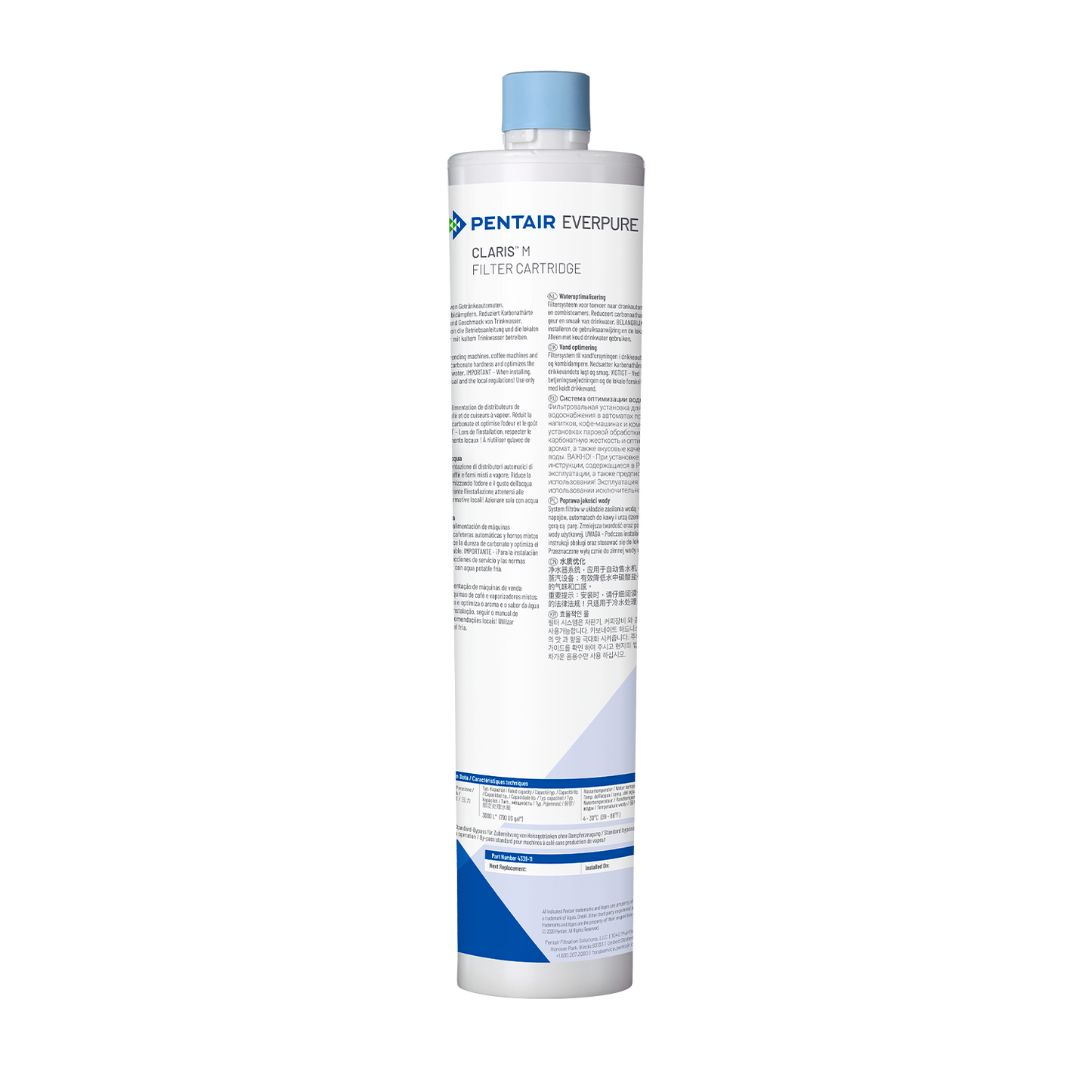

CLARIS M

APPLICATIONS

◆ Coffee
◆ Espresso
◆ Hot Drink Vending
◆ Combi Steamers
◆ Self-Cooking Systems
◆ Steam Cookers and Ovens
◆ Brewed Iced Tea

FEATURES • BENEFITS

◆ Removes harmful
contaminants and unpleasant
odors and tastes
◆ Removes particles down to
five (5) micron for highest
equipment protection
◆ Operates in vertical or
horizontal position
◆ Five-stage filtration process:
∙ Prefiltration
∙ Carbonate hardness
adjustment
∙ Fine filtration
∙ Highly efficient carbon block
∙ Solid membrane filter

SPECIFICATIONS

◆ Service Flow Rate
Maximum 2 Lpm (0.5 gpm)
◆ Pressure Requirements
2 – 8 bar (29 - 116 psi), non-shock
◆ Temperature Limits
4-30°C (39-86°F)
◆ Overall Dimensions
42.6 cm x 9.4 cm (16.78” L x 3.74”D)
◆ Rated Capacity
Rated for 2,498 L (660 gallons) for
Espresso applications and 2,990 L
(790 gallons) of OCS/Coffee applications*
