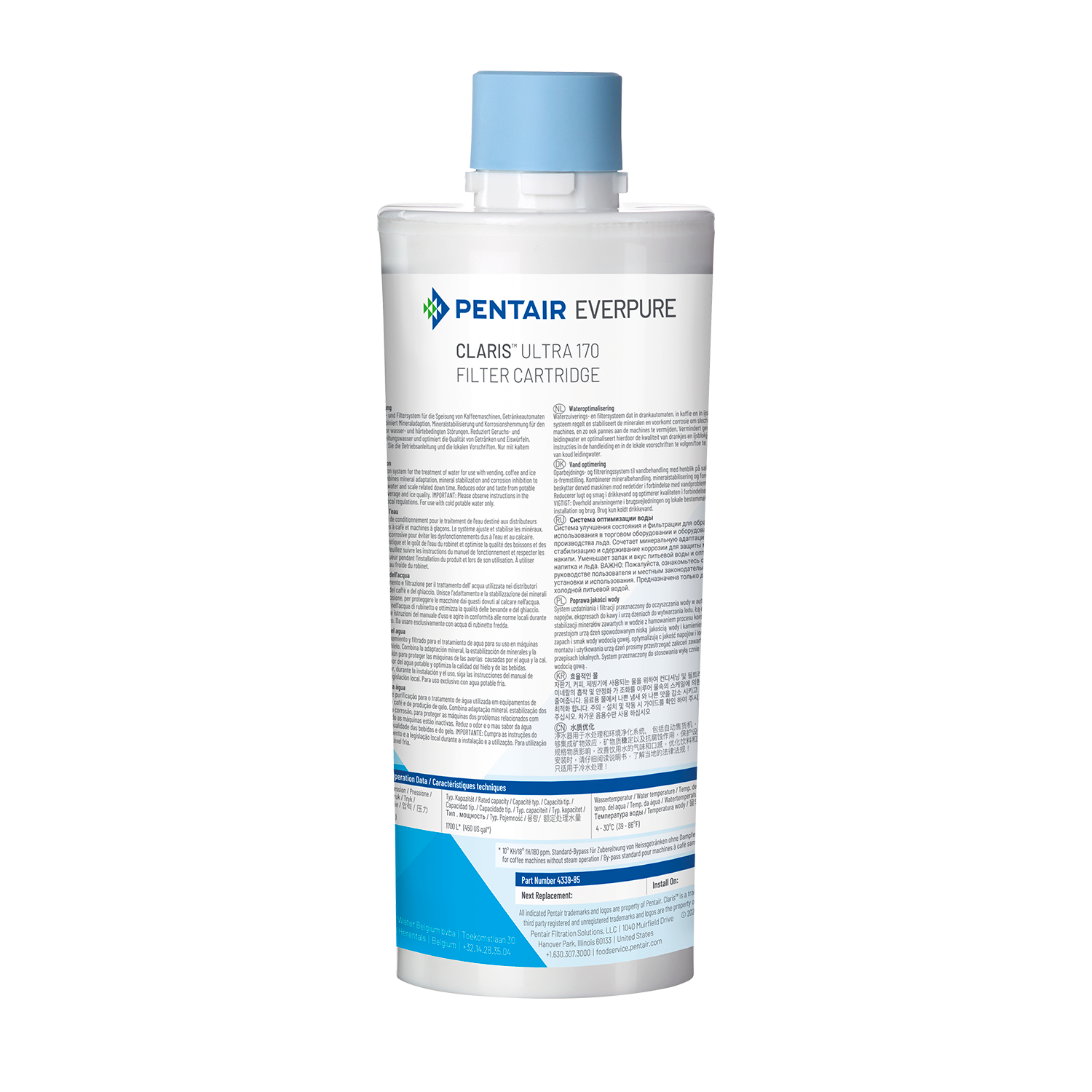

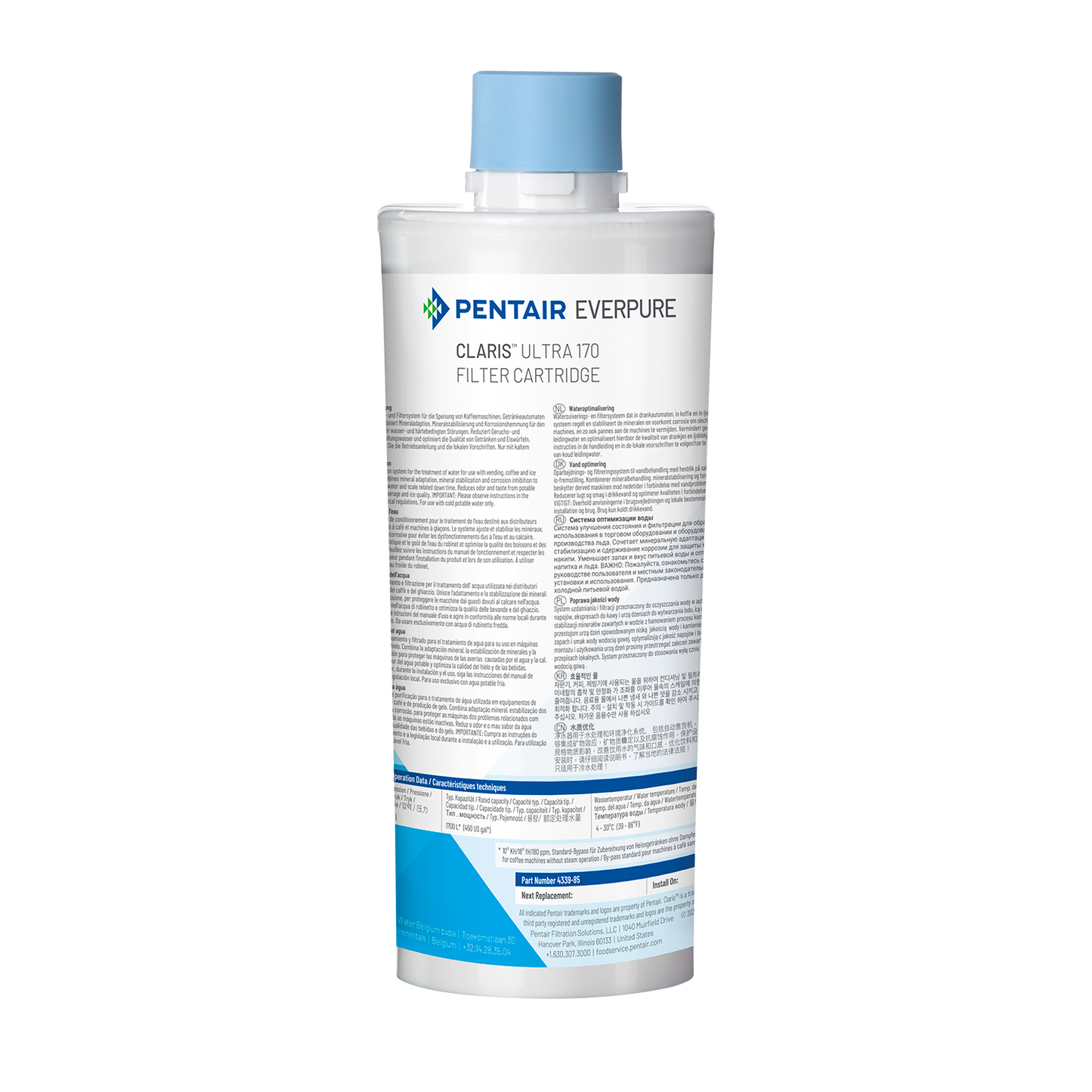

CLARIS ULTRA 170

APPLICATIONS

◆ Coffee, Espresso, Brewed Iced Tea, Hot Drink Vending

FEATURES • BENEFITS

◆ Unique water conditioning technology combines mineral adaptation,
mineral stabilization and corrosion inhibition
◆ Features a 5-stage filtration process that includes:
- Prefiltration
- Carbonate hardness adjustment
- Fine filtration
- Highly efficient carbon block
- Solid membrane filter
◆ Removes harmful contaminants and unpleasant odors and tastes
◆ Removes particles down to five (5) microns for highest equipment
protection
◆ Operates in a vertical or horizontal

SPECIFICATIONS

◆ Service Flow Rate
Maximum 0.5 gpm (2.0 Lpm)
◆ Rated Capacity
1’500 L for for espresso and
1’700 L for Coffee/OCS
This capacity is based on influent water hardness of 180
ppm with standard bypass settings.
◆ Pressure Requirements
29 - 116 psi (2 – 8 bar), non-shock
◆ Temperature
4 - 30°C (39 -86 °F)
◆ Overall Dimensions
245 mm L x 95 mm D
