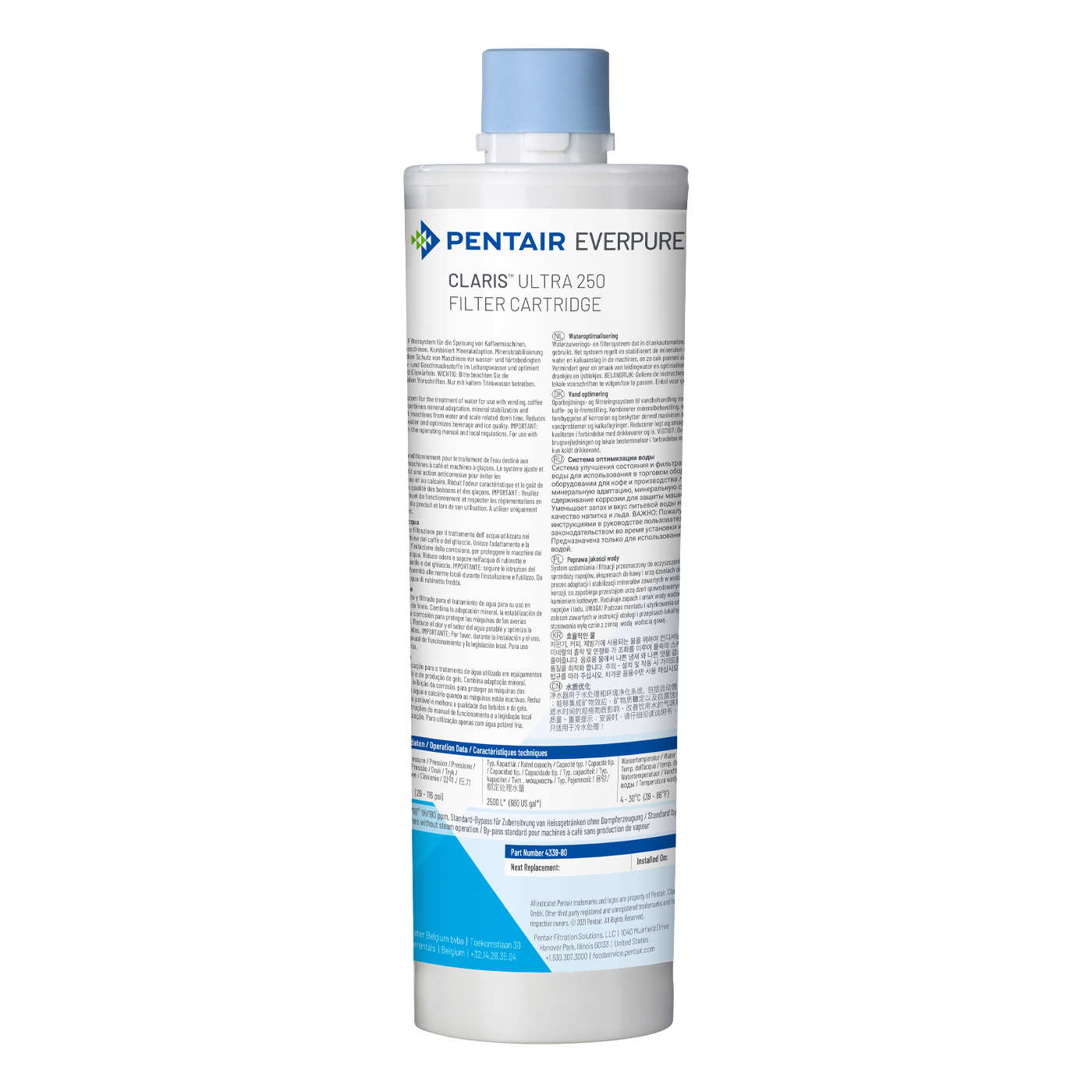

CLARIS ULTRA 250
CLARIS ULTRA 250
APPLICATIONS
◆ Coffee/Office Coffee
Service (OCS)
◆ Espresso
◆ Hot Drink Vending
◆ Brewed Iced Tea
FEATURES • BENEFITS
◆ Unique water conditioning
technology combines
mineral adaptation, mineral
stabilization and corrosion
inhibition
◆ Features a 5-stage filtration
process that includes:
∙ Prefiltration
∙ Carbonate hardness
adjustment
∙ Fine filtration
∙ Highly efficient carbon block
∙ Solid membrane filter
◆ Removes harmful
contaminants and unpleasant
odors and tastes
◆ Removes particles down to
five (5) microns for highest
equipment protection
◆ Operates in a vertical or
horizontal position
SPECIFICATIONS
◆ Service Flow Rate
Maximum 2.0 Lpm (0.5 gpm)
◆ Rated Capacity
2,250 L (594 gallonsL) for Espresso and
2,500 L ( 660 gallons) for Coffee/OCS*.
◆ Pressure Requirements
2 – 8 bar (29 - 116 psi ), non-shock
◆ Temperature Limits
4 - 30°C (39 - 86°F)
◆ Overall Dimensions
31.5 cm x 9.4 cm (12.39” L x 3.74” dia.)
◆ Electrical Connection
None required
