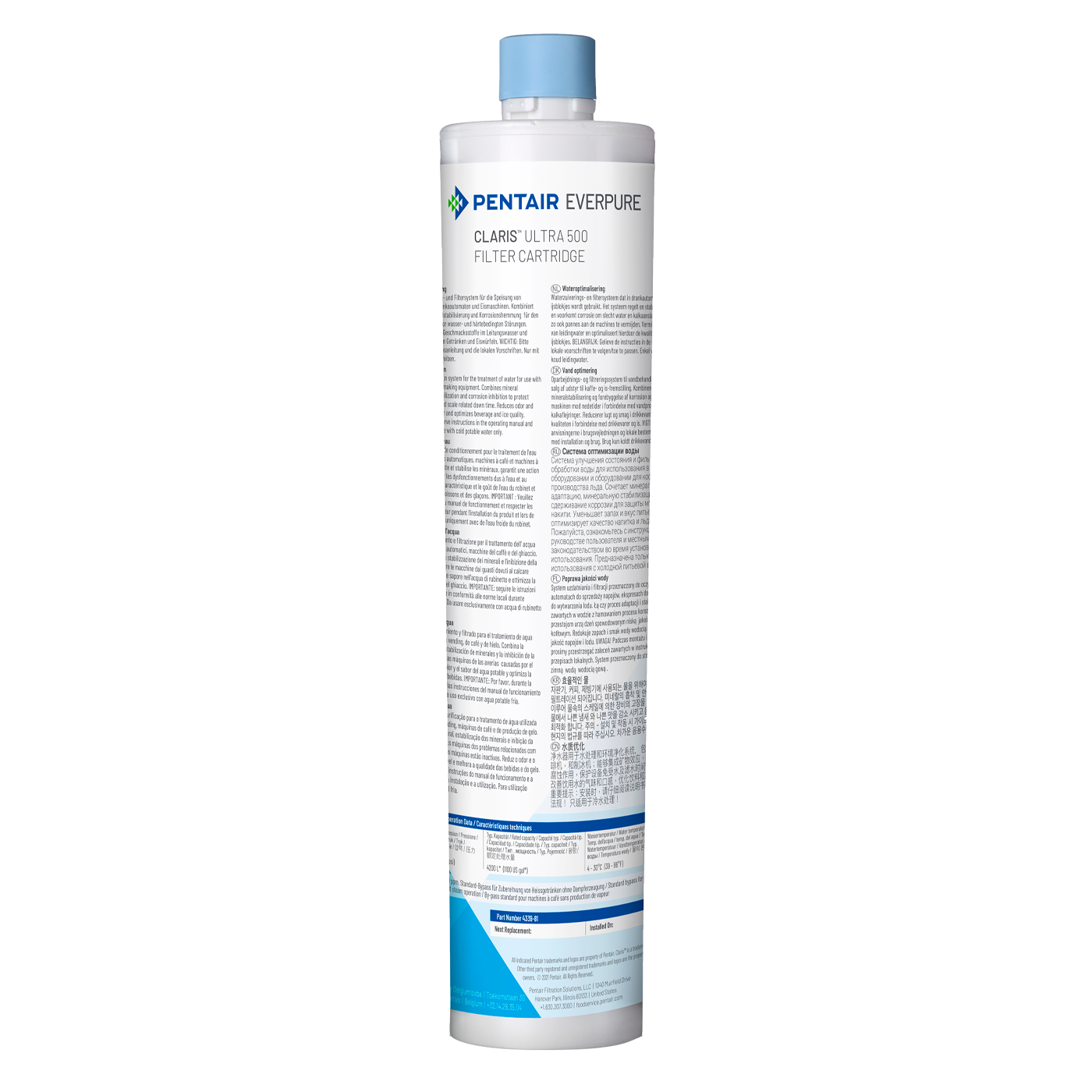

CLARIS ULTRA 500
CLARIS ULTRA 500
APPLICATIONS
◆ Coffee/Office Coffee
Service (OCS)
◆ Espresso
◆ Hot Drink Vending
◆ Brewed Iced Tea
FEATURES • BENEFITS
◆ Unique water conditioning
technology combines
mineral adaptation, mineral
stabilization and corrosion
inhibition
◆ Features a 5-stage filtration
process that includes:
∙ Prefiltration
∙ Carbonate hardness
adjustment
∙ Fine filtration
∙ Highly efficient carbon block
∙ Solid membrane filter
◆ Removes harmful
contaminants and unpleasant
odors and tastes
◆ Removes particles down to
five (5) microns for highest
equipment protection
◆ Operates in a vertical or
horizontal position
SPECIFICATIONS
◆ Service Flow Rate
Maximum 2.0 Lpm (0.5 gpm)
◆ Rated Capacity
Rated for 3,750 L (990 gallons) for
Espresso applications and 4,200L
(1,109 gallons) of Coffee/OCS
applications.
◆ Pressure Requirements
2 – 8 bar (29 - 116 psi), non-shock
◆ Temperature Limits
4 - 30°C (39 - 86°F)
◆ Overall Dimensions
42.6 cm x 9.4 cm (16.78” L x 3.74” dia.)
◆ Electrical Connection
None required
