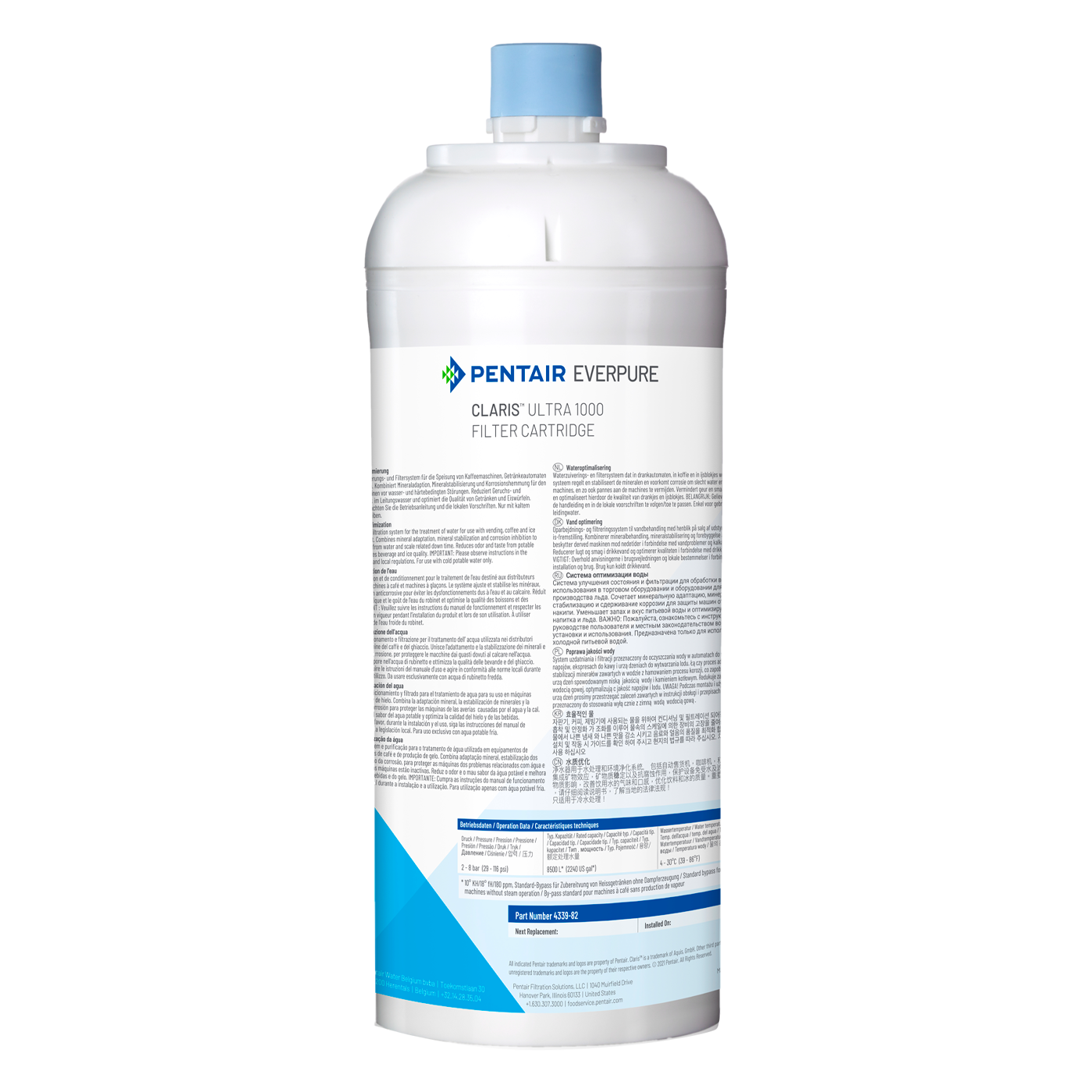

CLARIS ULTRA 1000
CLARIS ULTRA 1000
APPLICATIONS
◆ Coffee/Office Coffee
Service (OCS)
◆ Espresso
◆ Brewed Iced Tea
◆ Hot Drink Vending
FEATURES • BENEFITS
◆ Unique water conditioning
technology combines
mineral adaptation, mineral
stabilization and corrosion
inhibition
◆ Features a 5-stage filtration
process that includes:
∙ Prefiltration
∙ Carbonate hardness
adjustment
∙ Fine filtration
∙ Highly efficient carbon block
∙ Solid membrane filter
◆ Removes harmful
contaminants and unpleasant
odors and tastes
◆ Removes particles down to
five (5) microns for highest
equipment protection
◆ Operates in a vertical or
horizontal position
SPECIFICATIONS
◆ Service Flow Rate
2.0 Lpm (Maximum 0.5 gpm)
◆ Rated Capacity
7,000 L (1,849 gallons) for Espresso and
8,500 L (2,245 gallons) for Coffee/OCS*
◆ Pressure Requirements
2 – 8 bar (29 - 116 psi), non-shock
◆ Temperature Limits
4 - 30°C (39 - 86°F)
◆ Overall Dimensions
36.0 cm x 13.6 cm (14.18” L x 5.35” dia)
◆ Electrical Connection
None required
