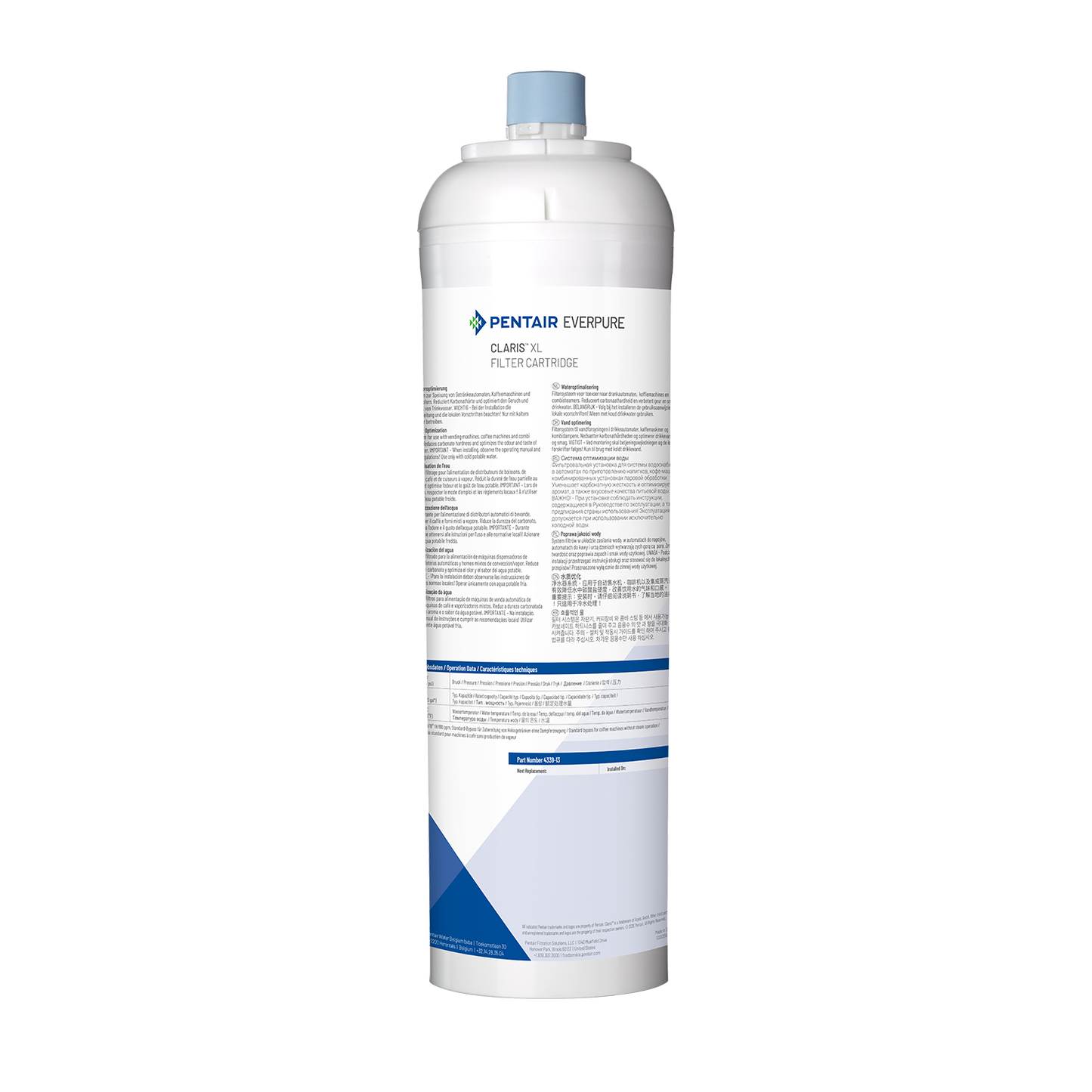

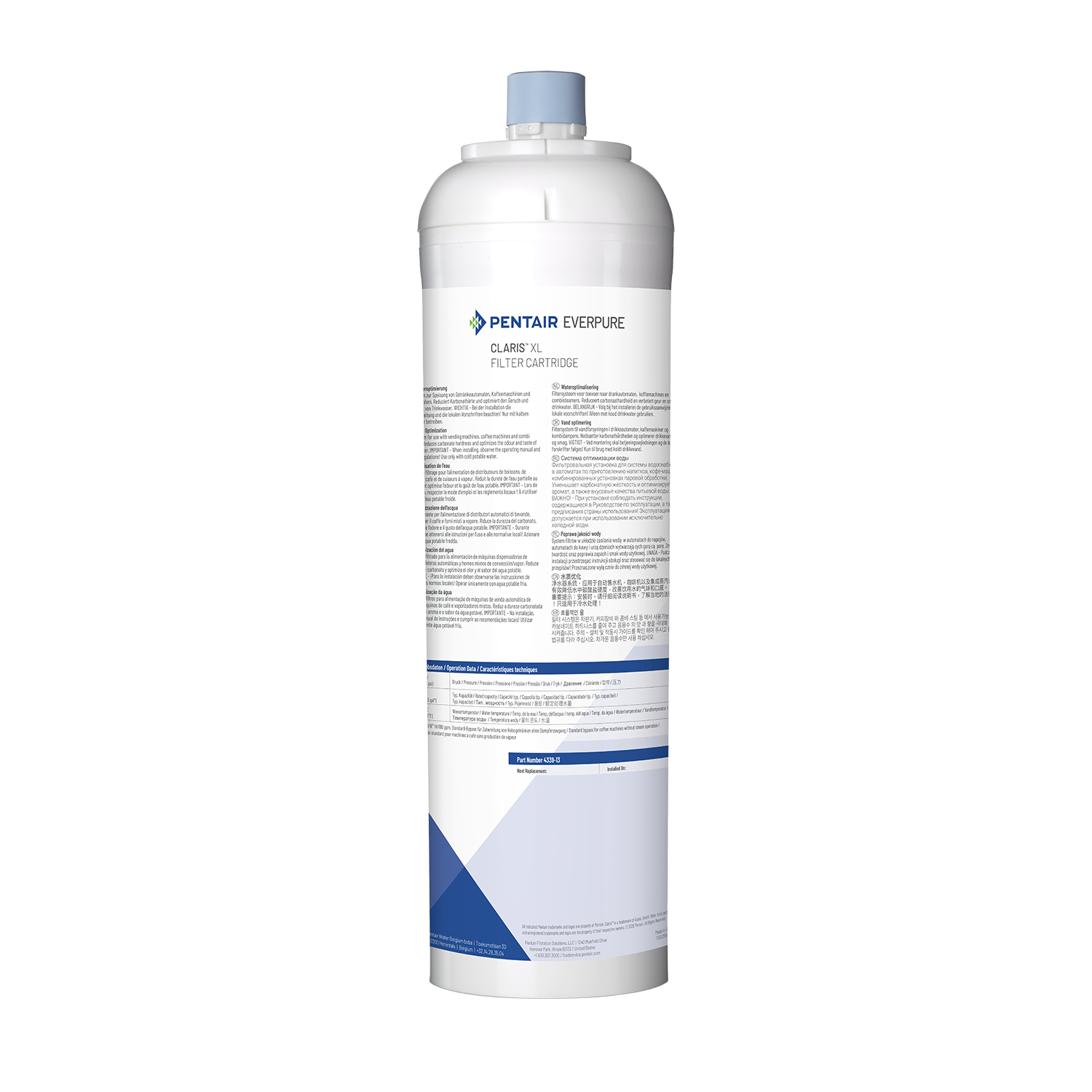

CLARIS XL

APPLICATIONS

◆ Coffee
◆ Espresso
◆ Hot Drink Vending
◆ Combi Steamers
◆ Self-Cooking Systems
◆ Steam Cookers and Ovens
◆ Brewed Iced Tea

FEATURES • BENEFITS

◆ Removes harmful
contaminants and unpleasant
odors and tastes
◆ Removes particles down to
five (5) micron for highest
equipment protection
◆ Operates in vertical or
horizontal position
◆ Five-stage filtration process:
∙ Prefiltration
∙ Carbonate hardness
adjustment
∙ Fine filtration
∙ Highly efficient carbon block
∙ Solid membrane filter

SPECIFICATIONS

◆ Service Flow Rate
Maximum 3.7 Lpm (1.0 gpm)
◆ Pressure Requirements
2 – 8 bar (29 - 116 psi), non-shock
◆ Temperature Limits
4 - 30°C (39 - 86°F)
◆ Overall Dimensions
47.1 cm x 13.6 cm (18.56” L x 5.35” D)
◆ Rated Capacity
5,999 L (1,585 gallons) for Espresso and
7,192 L (1,900 gallons) for OCS/Coffee*
